Introduction

When we evaluate definite integrals, we naturally prefer analytical solutions: finding an antiderivative and evaluating it at the boundaries. However, many integrals that arise in engineering practice cannot be evaluated analytically, requiring numerical approximation instead. In this chapter, we examine several numerical integration schemes that balance accuracy against computational cost, allowing us to approximate integrals with controlled error.

We begin by exploring a straightforward approach: constructing integration rules that are easy to evaluate. This investigation reveals both the power and limitations of simple schemes, motivating more sophisticated methods.

Consider the definite integral of a function \(f(x)\) over an arbitrary interval:

\[ \int_a^b f(x) d x \]

To develop numerical integration rules that apply to any interval \([a,b]\), we face a fundamental challenge: designing rules that work independently of the specific limits. Rather than creating separate integration formulas for each possible interval, we use coordinate transformation to transform any interval \([a,b]\) to a standard reference interval. This approach separates the geometry of the integration domain from the integration rule itself, enabling us to develop general-purpose methods once and reuse them for arbitrary intervals.

We map any range \(x \in[a, b]\) to the standard range \(\xi \in[0,1]\) using the linear transformation \(x(\xi):=(1-\xi) a+\xi b\). The derivative of this mapping gives \(\frac{d x}{d \xi}=b-a\), which appears as the Jacobian in the change of variables:

\[ \boxed{\int_a^b f(x) d x=\int_0^1 f(x(\xi)) \frac{d x}{d \xi} d \xi=(b-a) \int_0^1 f(x(\xi)) d \xi} \]

This transformation reveals that integration over \([a,b]\) can be computed by scaling the result from the standard interval \([0,1]\) by the interval length \(b-a\).

Example:

Let’s say we want to integrate some polynomial of order \(n\)

\[ \int_a^b x^n d x=(b-a) \int_0^1 x(\xi)^n d \xi=(b-a) \int_0^1((1-\xi) a+\xi b)^n d \xi=-\frac{a^{n+1}-b^{n+1}}{n+1} \]

This gives a rule for integrating polynomials of order \(n\) over any range \([a,b]\), which can be implemented in code as a lookup table. For example,

\[ \int_2^5 2 x-4 x^2 d x=-2 \frac{a^{1+1}-b^{1+1}}{1+1}--4 \frac{a^{2+1}-b^{2+1}}{2+1}=-135 \]

But in general it is awkward to use this rule to integrate e.g., \(\int_{x_1}^{x_2}(1-x)(1-x) d x\) or \(\int_{x_1}^{x_2} \varphi^T \varphi d x\) without additional preparation which makes it cumbersome to implement in a computer program and run efficiently.

The same goes for the integration rulse such as

\[ \int_{-1}^1 x^n d x= \begin{cases}\frac{2}{n+1} & \text { if } n \text { is even } \\ 0 & \text { if } n \text { is odd }\end{cases} \]

and

\[ \int_0^1 x^n d x=\frac{1}{n+1} \]

We want a more general approach to numerical integration

sympy.integrate

The sympy library in Python provides a powerful tool for symbolic mathematics, including integration. The integrate function can be used to compute definite and indefinite integrals of functions. This is great for analytical solutions!

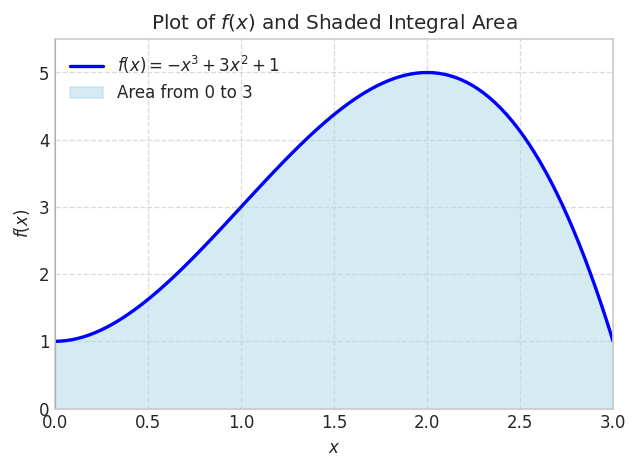

Let’s consider a polynomial function \(f(x)=1+3 x^2-x^3\) for \(x \in[0,3]\)

import matplotlib.pyplot as plt
import numpy as np
import sympy as sp
from mechanicskit import fplot

plt.style.use('seaborn-v0_8-whitegrid')
plt.rcParams['figure.dpi'] = 120

x = sp.Symbol('x')
f_expr = 1 + 3*x**2 - x**3

x1 = 0
x2 = 3

fig, ax = plt.subplots(figsize=(6, 4))
fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

f_numeric = sp.lambdify(x, f_expr, 'numpy')
x_fill = np.linspace(x1, x2, 500)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5, label=f'Area from {x1} to {x2}')


ax.set_xlabel('$x$')
ax.set_ylabel('$f(x)$')
ax.set_title('Plot of $f(x)$ and Shaded Integral Area')
ax.axhline(0, color='black', linewidth=0.5) # Add x-axis
ax.axvline(0, color='black', linewidth=0.5) # Add y-axis
ax.grid(True, linestyle='--', alpha=0.7)
ax.legend(loc='upper left')
ax.set_xlim(x1, x2)
ax.set_ylim(0, max(y_fill)*1.1)
plt.show()

We can integrate this analytically

integral_value = sp.integrate(f_expr, (x, x1, x2))
integral_value

integral_value.evalf()

Non-trivial integrals

This works very well even for functions that do not have simple symbolic integrals.

f_expr = 1/sp.sqrt(sp.sin(x))
x1 = 0
x2 = 1

fig, ax = plt.subplots(figsize=(8, 5))

x1 = 0.01
fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

f_numeric = sp.lambdify(x, f_expr, 'numpy')
x_fill = np.linspace(x1, x2, 500)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5, label=f'Area from {x1} to {x2}')


ax.set_xlim(x1, x2)
ax.set_ylim(0, max(y_fill)*1.1)
ax.legend(loc='upper right')
ax.grid(False)
plt.show()

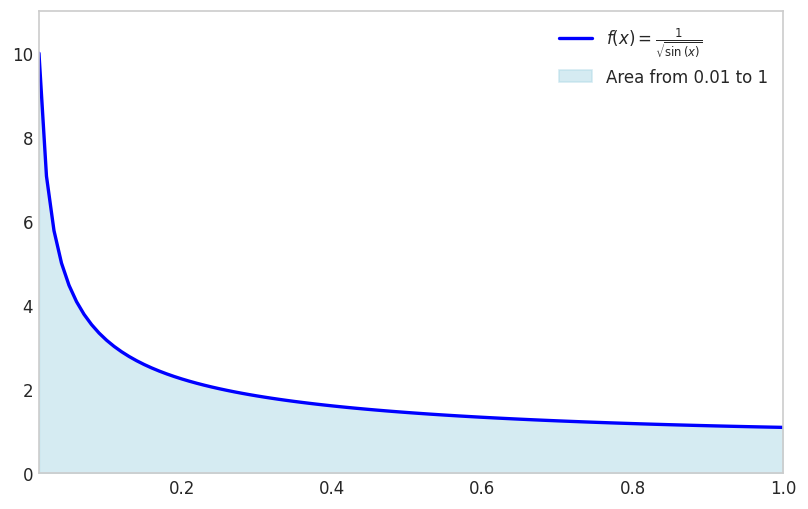

Note that we avoid the singularity by shifting the lower limit away from zero.

sp.integrate(f_expr, (x, x1, x2))

x1 = 0
sp.integrate(f_expr, (x, x1, x2)).evalf()

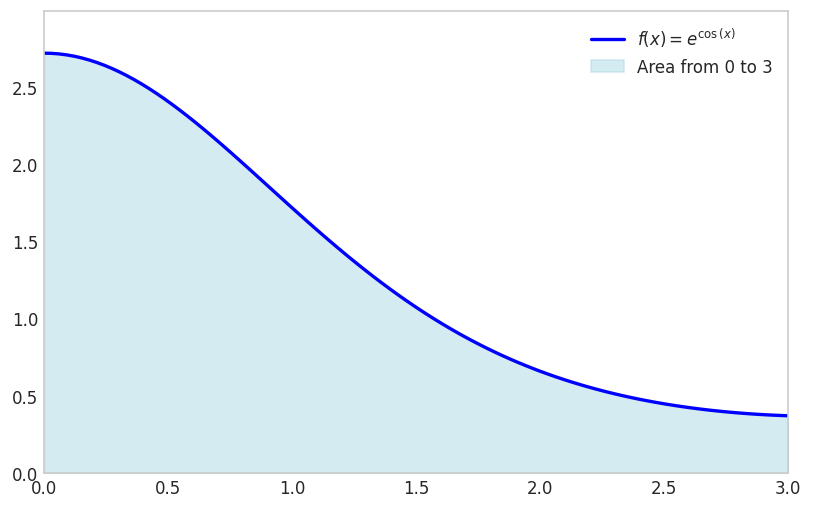

Another example is the function \(f(x)=e^{\cos(x)}\) for \(x \in[0,3]\)

f_expr = sp.exp(sp.cos(x))
x1 = 0; x2 = 3

fig, ax = plt.subplots(figsize=(8, 5))

fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

f_numeric = sp.lambdify(x, f_expr, 'numpy')
x_fill = np.linspace(x1, x2, 500)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5, label=f'Area from {x1} to {x2}')


ax.set_xlim(x1, x2)
ax.set_ylim(0, max(y_fill)*1.1)
ax.legend(loc='upper right')
ax.grid(False)
plt.show()

sp.integrate(f_expr, (x, x1, x2))

Notice how integrate has failed to find a symbolic integral. It took a long time, and actually fell back on sympy.Integral.

sp.Integral(f_expr, (x, 0, 3))

sp.Integral(f_expr, (x, 0, 3)).evalf()

sp.integrate(f_expr, (x, 0, 3)).evalf()

sp.Integral(f_expr, (x, 0,3 )).evalf()

Riemann sum

We begin our examination of numerical integration with the most fundamental approach: the Riemann sum. This method approximates the integral by dividing the interval \([a,b]\) into \(N\) subintervals of equal width \(\Delta x = (b-a)/N\) and evaluating the function at one point within each subinterval. Using the left endpoint of each subinterval gives

\[ \int_a^b f(x) \approx \frac{b-a}{N} \sum_{i=1}^N f\left(x_i\right) \]

where \(x_i\) denotes the evaluation point in the \(i\)-th subinterval. This formula treats the integral as the limit of a sum of rectangular areas, each with width \(\Delta x\) and height \(f(x_i)\). While conceptually simple, we shall see that this approach converges slowly, motivating more sophisticated methods.

Code

x = sp.Symbol('x')
f_expr = 1 + 3*x**2 - x**3

x1 = 0; x2 = 3

from matplotlib.animation import FuncAnimation
from IPython.display import HTML
import matplotlib
matplotlib.rcParams['animation.embed_limit'] = 50  # Increase if needed
from matplotlib.colors import to_rgba

# Define N values
N_values = [1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 100, 150, 200]
N_values = list(range(2, 20, 1)) + list(range(20, 201, 5))

def animate(frame_idx):
    """Animation function for each frame"""
    ax.clear()

    N = N_values[frame_idx]

    # Compute Riemann sum data
    f_numeric = sp.lambdify(x, f_expr, 'numpy')
    dx = (x2 - x1) / N
    x_points = np.linspace(x1 + dx/2, x2 - dx/2, N)  # Center points for bars
    y_points = f_numeric(x_points - dx/2)  # Left Riemann sum (use left edge)

    riemann_sum = dx * np.sum(y_points)

    # Compute exact integral
    exact_integral = sp.Integral(f_expr, (x, x1, x2)).evalf()
    error = abs(float(exact_integral) - riemann_sum)

    # Determine edge opacity based on N
    if N <= 10:
        edge_alpha = 0.5
        edge_color = to_rgba('black', alpha=edge_alpha)
        linewidth = 1
    elif N < 75:
        edge_alpha = 0.5 - ((N - 10) / (75 - 10))*0.5
        edge_color = to_rgba('black', alpha=edge_alpha)
        linewidth = 1
    else:
        edge_color = 'lightcoral'
        # edge_color = to_rgba('black', alpha=0)
        linewidth = 1
    # Plot Riemann sum as bars
    ax.bar(x_points, y_points, width=dx, align='center',
           facecolor='lightcoral',
        #    alpha=1,
           edgecolor=edge_color, linewidth=linewidth,
           label='Riemann Sum')

    # Plot the function on top
    x_plot = np.linspace(x1, x2, 500)
    y_plot = f_numeric(x_plot)
    ax.plot(x_plot, y_plot, color='blue', linewidth=2,
            label=f'$f(x) = {sp.latex(f_expr)}$', zorder=5)

    # Set labels and limits
    ax.set_xlabel('$x$', fontsize=12)
    ax.set_ylabel('$f(x)$', fontsize=12)
    ax.set_xlim(x1, x2)
    y_max = max(f_numeric(np.linspace(x1, x2, 500)))
    ax.set_ylim(0, y_max * 1.2)
    ax.grid(True, linestyle='--', alpha=0.7)
    ax.axhline(0, color='black', linewidth=0.5)
    ax.axvline(0, color='black', linewidth=0.5)

    # Add text box with results
    textstr = f'$N = {N}$\n'
    textstr += f'Exact Integral: ${exact_integral:.6f}$\n'
    textstr += f'Riemann Sum: ${riemann_sum:.6f}$\n'
    textstr += f'Error: ${error:.6f}$'

    props = dict(boxstyle='round', facecolor='wheat', alpha=0.8)
    ax.text(0.02, 0.98, textstr, transform=ax.transAxes, fontsize=11,
            verticalalignment='top', bbox=props)

    ax.legend(loc='upper right')

# Create figure and axis (close to prevent static display)
fig, ax = plt.subplots(figsize=(6, 4))
plt.close(fig)  # Prevent static image from showing

# Create animation
anim = FuncAnimation(fig, animate, frames=len(N_values),
                     interval=800, repeat=True)

# Display as interactive HTML
# HTML(anim.to_jshtml())

# Get the HTML and wrap it with responsive CSS
anim_html = anim.to_jshtml()

# Convert to responsive HTML
import mechanicskit as mk
mk.to_responsive_html(anim, container_id='riemann_sum_animation')

Once Loop Reflect

To assess the Riemann sum’s accuracy quantitatively, we measure the absolute integration error as the difference between the Riemann approximation and the exact integral value:

\[ \epsilon=\left|I_{\text {Riemann }}-I_{\text {exact }}\right| \]

For our polynomial example with \(N=200\) function evaluations, we obtain:

N = 200
f_numeric = sp.lambdify(x, f_expr, 'numpy')
dx = (x2 - x1) / N

x_points = np.linspace(x1, x2, N)
y_points = f_numeric(x_points)

I_riemann = dx * np.sum(y_points)
I_exact = sp.Integral(f_expr, (x, x1, x2)).evalf()

error_riemann = abs( I_exact - I_riemann)
error_riemann

Note that the absolute integration error is still significantly large after 200 function evaluations!

This slow convergence reveals the central challenge in numerical integration: developing schemes that reduce error more rapidly as we increase the number of function evaluations. Since computational cost scales directly with the number of evaluations \(N\), methods that achieve a given accuracy with fewer evaluations provide substantial practical advantage. The trapezoidal rule, which we examine next, demonstrates how a simple refinement can dramatically improve convergence.

Trapezoidal rule

The Riemann sum approximates the function as piecewise constant over each subinterval. A natural improvement uses piecewise linear approximation instead, connecting function values at adjacent points with straight line segments. This geometric insight leads to the trapezoidal rule.

Over a single interval \([a,b]\), we approximate the function linearly using shape functions that interpolate between the endpoint values: \(f(x) \approx \varphi_1(x) f(a)+\varphi_2(x) f(b)\) where \(\varphi_1(x)=(b-x)/(b-a)\) and \(\varphi_2(x)=(x-a)/(b-a)\). Integrating this linear approximation over the interval gives

\[ I \approx \frac{f(a)}{b-a} \int_a^b b-x d x+\frac{f(b)}{b-a} \int_a^b x-a d x=\frac{f(a)}{b-a}\left[b x-\frac{1}{2} x^2\right]_a^b+\frac{f(b)}{b-a}\left[\frac{1}{2} x^2-a x\right]_a^b \]

\[ =\frac{f(a)}{b-a}\left(b^2-\frac{1}{2} b^2-a b-\frac{1}{2} a^2\right)+\frac{f(b)}{b-a}\left(\frac{1}{2} b^2-a b-\frac{1}{2} a^2-a^2\right) \\ \]

\[ =\frac{f(a)}{b-a} \frac{1}{2}(b-a)^2+\frac{f(b)}{b-a} \frac{1}{2}(b-a)^2 \\ \]

\[ =\frac{1}{2}(b-a)(f(a)+f(b)) \]

This is called the trapezoidal rule. And for a chained approximation with \(N+1\) evenly spaced points the approximation becomes:

\[ \boxed{\int_a^b f(x) d x \approx \frac{b-a}{2 N} \sum_{i=1}^N\left(f\left(x_i\right)+f\left(x_{i+1}\right)\right)} \]

For example for the function above using \(N=200\) we have:

f_expr = 1 + 3*x**2 - x**3
x1 = 0; x2 = 3

I_exact = sp.Integral(f_expr, (x, x1, x2)).evalf()

N = 200
f_numeric = sp.lambdify(x, f_expr, 'numpy')

x_points = np.linspace(x1, x2, N+1)

x_i =  x_points[0:-1]
x_i1 = x_points[1:]
I_trapz = np.sum(f_numeric(x_i) + f_numeric(x_i1)) * (x2-x1)/(2*N)
I_trapz

np.float64(9.74983125)

error_trapz = abs(I_exact - I_trapz)
error_trapz

np.trapezoid(f_numeric(x_points), x_points)

np.float64(9.74983125)

error_riemann/error_trapz

We see a 200x improvement in accuracy for the same number of function evaluations!

The dramatic improvement in accuracy reveals different error scaling laws. Riemann sum error decreases as \(O(h^2)\) where \(h=(b-a)/N\) is the interval width, meaning that halving the interval reduces error by a factor of 4. Trapezoidal rule error decreases as \(O(h^3)\) for smooth functions, giving eightfold error reduction when halving the interval. For our problem with \(N=200\) subintervals, the ratio of error scaling terms \((1/N)^2 / (1/N)^3 = N\) explains the observed 200-fold improvement. This \(O(h^3)\) convergence makes the trapezoidal rule practical for many applications, though Gaussian quadrature achieves even faster convergence through optimal node placement.

Code

from matplotlib.animation import FuncAnimation
from IPython.display import HTML
import matplotlib
matplotlib.rcParams['animation.embed_limit'] = 50  # Increase if needed
from matplotlib.colors import to_rgba

f_expr = 1 + 3*x**2 - x**3
x1 = 0; x2 = 3
f_numeric = sp.lambdify(x, f_expr, 'numpy')

I_exact = sp.Integral(f_expr, (x, x1, x2)).evalf()

N_values = list(range(4, 20, 1)) + list(range(20, 201, 5))
# N_values = [4,8,15]

def makePlot(N):
   x_points = np.linspace(x1, x2, N+1)

   dx = (x2 - x1) / (N+1)
   y_points = f_numeric(x_points)
   I_riemann = dx * np.sum(y_points)
   error_riemann = abs( I_exact - I_riemann)

   x_i =  x_points[0:-1]
   x_i1 = x_points[1:]

   I_trapz = np.sum(f_numeric(x_i) + f_numeric(x_i1)) * (x2-x1)/(2*N)
   error_trapz = abs(I_exact - I_trapz)

   if N <= 10:
      edge_alpha = 0.5
      edge_color = to_rgba('black', alpha=edge_alpha)
   elif N < 50:
      edge_alpha = 0.5 - ((N - 10) / (50 - 10))*0.5
      edge_color = to_rgba('black', alpha=edge_alpha)
   else:
      edge_color = to_rgba('cyan', alpha=0)

#    fig, ax = plt.subplots(figsize=(6, 4))
   ax.grid(False)
   for iel in range(N):
      xs = [x_i[iel], x_i[iel], x_i1[iel], x_i1[iel]]
      ys = [0, f_numeric(x_i[iel]), f_numeric(x_i1[iel]), 0]
      ax.fill(xs, ys, facecolor = to_rgba('cyan', alpha=0.7),
               edgecolor = edge_color)

   # Plot the function on top
   x_plot = np.linspace(x1, x2, 500)
   y_plot = f_numeric(x_plot)
   ax.plot(x_plot, y_plot, color='blue', linewidth=2,
         label=f'$f(x) = {sp.latex(f_expr)}$', zorder=5)

   # Set labels and limits
   ax.set_xlabel('$x$', fontsize=12)
   ax.set_ylabel('$f(x)$', fontsize=12)
   ax.set_xlim(x1, x2)
   y_max = max(f_numeric(np.linspace(x1, x2, 500)))
   ax.set_ylim(0, y_max * 1.2)
   ax.grid(True, linestyle='--', alpha=0.7)
   ax.axhline(0, color='black', linewidth=0.5)
   ax.axvline(0, color='black', linewidth=0.5)

   # Add text box with results
   textstr = f'$N = {N}$\n'
   textstr += f'I_e: ${I_exact:.6f}$\n'
   textstr += f'I_R: ${I_riemann:.6f}$, error:${error_riemann:.4f}$\n'
   textstr += f'I_T: ${I_trapz:.6f}$, error:${error_trapz:.4f}$'

   props = dict(boxstyle='round', facecolor='w', alpha=0.8)
   ax.text(0.02, 0.98, textstr, transform=ax.transAxes, fontsize=10,
           verticalalignment='top', bbox=props)

   ax.legend(loc='upper right')

def animate(frame_idx):
    """Animation function for each frame"""
    ax.clear()

    N = N_values[frame_idx]
    makePlot(N)

# Create figure and axis (close to prevent static display)
fig, ax = plt.subplots(figsize=(6, 4))
plt.close(fig)  # Prevent static image from showing

# Create animation
anim = FuncAnimation(fig, animate, frames=len(N_values),
                     interval=800, repeat=True)

mk.to_responsive_html(anim, container_id='trapz_animation')

Once Loop Reflect

Exact numerical integration of polynomials

The trapezoidal rule integrates linear polynomials exactly:

\[ \int_a^b p_1(x) d x = \frac{b-a}{2}(p_1(a)+p_1(b)) \]

where \(p_1(x)=c_0+c_1 x\) is a polynomial of order 1.

x = sp.Symbol('x')
f_expr = 1 + 3*x
x1 = 0; x2 = 3
f_numeric = sp.lambdify(x, f_expr, 'numpy')

x_points = np.linspace(x1, x2, 2)
np.trapezoid(f_numeric(x_points), x_points)

np.float64(16.5)

sp.Integral(f_expr, (x, x1, x2)).evalf()

fig, ax = plt.subplots(figsize=(6, 4))

fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

x_fill = np.linspace(x1, x2, 2)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5, label=f'Area from {x1} to {x2}')
ax.grid(False)
ax.set_xlim(x1, x2)
ax.set_ylim(0, max(y_fill)*1.1)
fig.show()

Since two points define a line, the trapezoidal rule will always give the exact result for linear polynomials.

A cheaper option is to evaluate the midpoint \(\frac{a+b}{2}\) instead:

xm = (x1 + x2)/2

(x2-x1)*f_numeric(xm)

16.5

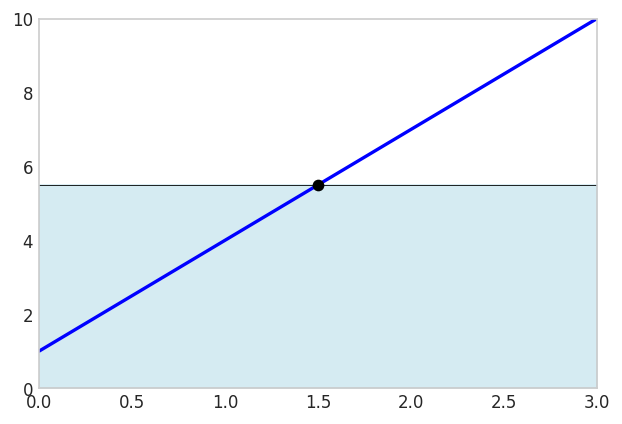

fig, ax = plt.subplots(figsize=(6, 4))

fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

x_fill = np.linspace(x1, x2, 2)
y_m = f_numeric(xm)

ax.fill_between(x_fill, [y_m], color='lightblue', alpha=0.5, label=f'Area from {x1} to {x2}')
ax.plot([xm], [y_m], color='k', marker='o')
ax.plot([x1, x2], [y_m, y_m], color='k', linestyle='-', lw=0.5)
ax.grid(False)
ax.set_xlim(x1, x2)
ax.set_ylim(0, 10)
fig.show()

This is exact because the error above the graph cancels the error below the graph!

Gauss quadrature rule

The Riemann sum and trapezoidal rule use equally spaced evaluation points, a seemingly natural choice but not, as it turns out, optimal. Gaussian quadrature achieves a remarkable result: by carefully selecting both the evaluation points (nodes) and their weights, an \(n\)-point rule can integrate polynomials of degree \(2n-1\) exactly. This doubling of precision compared to methods using equally spaced points makes Gaussian quadrature the method of choice when high accuracy is required from a limited number of function evaluations.

The general form of an n-point Gaussian quadrature for the standard domain \(x\in[-1,1]\) is:

\[ \boxed{\int_{-1}^{1} f(x) dx \approx \sum_{i=1}^{n} w_i f(x_i)} \]

where x_i are the nodes and w_i are the weights. Notice that the integral is defined on the interval [-1, 1]. This is the standard “reference” interval for Gaussian quadrature.

x = sp.Symbol('x')
f_expr = x
x1 = 0; x2 = 1
I_e = sp.Integral(f_expr, (x, x1, x2)).evalf()
I_e

gp = 0; gw = 2;

I_G = gw * f_expr.subs(x, (x2 - x1)/2 + x1) * (x2 - x1)/2
I_G

x = sp.Symbol('x')
p = lambda x: 1 + 3*x**2 - 3*x**3
sp.Integral(p(x), (x, 0, 1)).evalf()

a = 0; b = 1
gp = [-1/sp.sqrt(3), 1/sp.sqrt(3)]
gw = [1, 1]

x1 = gp[0]*(b - a)/2 + (b + a)/2
x2 = gp[1]*(b - a)/2 + (b + a)/2

dx = (b - a)/2

I_Gauss = p(x1)*gw[0]*dx + \
          p(x2)*gw[1]*dx
I_Gauss

I_Gauss.simplify()

x = sp.Symbol('x')
p = 1 + 3*x**2 - 3*x**3
p_num = sp.lambdify(x, p, 'numpy')
a = 0; b = 1

gp = [-1/np.sqrt(3), 1/np.sqrt(3)]
gw = [1, 1]

x1 = gp[0]*(b - a)/2 + (b + a)/2
x2 = gp[1]*(b - a)/2 + (b + a)/2

dx = (b - a)/2

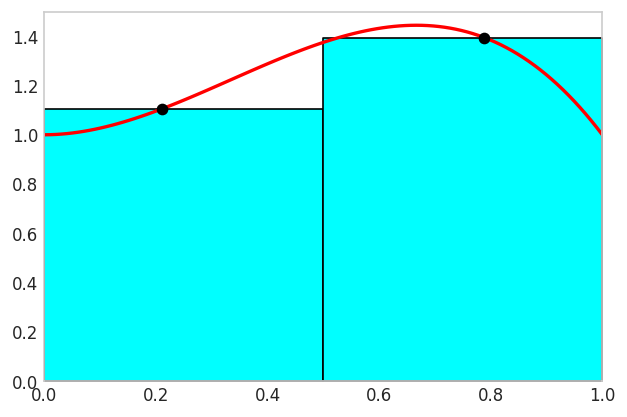

fig, ax = plt.subplots(figsize=(6, 4))

fplot(p, range=(a, b), color='red', linewidth=2,
      label=f'$f(x) = {sp.latex(p)}$')

y1 = p_num(x1)
y2 = p_num(x2)

ax.fill_between([0,0.5], [y1, y1], color='cyan',edgecolor='k')
ax.fill_between([0.5,1], [y2, y2], color='cyan',edgecolor='k')
ax.plot([x1,x2], [y1,y2], color='k', marker='o', linestyle='None')
ax.grid(False)
ax.set_xlim(a, b)
ax.set_ylim(0, 1.5)
fig.show()

Legendre Polynomials and Their Role in Gaussian Quadrature

The optimality of Gaussian quadrature arises from a deep connection to orthogonal polynomials. Two functions \(f\) and \(g\) are orthogonal on an interval \([a,b]\) with respect to a weight function \(w(x)\) if their inner product vanishes:

\[ \int_a^b w(x) f(x) g(x) \, dx = 0 \]

Legendre polynomials \(P_n(x)\) form an orthogonal family on \([-1,1]\) with unit weight function \(w(x)=1\):

\[ \int_{-1}^{1} P_m(x)P_n(x) \, dx = 0 \quad \text{for } m \neq n \]

This orthogonality property is the key to understanding why Gaussian quadrature is optimal. The optimality arises from solving a fundamental optimization problem: given \(n\) evaluation points, where should we place them to integrate the highest possible polynomial degree exactly? The answer lies in orthogonal polynomials.

When we approximate a function using an orthogonal polynomial basis, each basis function captures a distinct component of the function with no redundancy. This orthogonality ensures that the polynomial interpolant minimizes the approximation error in the least-squares sense. The roots of \(P_n(x)\) are the points where the \(n\)-th degree polynomial oscillates through zero, and remarkably, these are precisely the optimal locations for function evaluation in an \(n\)-point quadrature rule. By using these nodes, we achieve exact integration for polynomials of degree \(2n-1\) rather than merely degree \(n-1\), effectively doubling the precision for the same computational cost.

The first few Legendre polynomials are:

• \(P_0(x) = 1\)
• \(P_1(x) = x\)
• \(P_2(x) = \frac{1}{2}(3x^2 - 1)\)
• \(P_3(x) = \frac{1}{2}(5x^3 - 3x)\)
• \(P_4(x) = \frac{1}{8}(35x^4 - 30x^2 + 3)\)

The fundamental theorem of Gaussian quadrature states that the roots of \(P_n(x)\) are the optimal nodes for an \(n\)-point rule, enabling exact integration of polynomials up to degree \(2n-1\). This remarkable result (that \(n\) carefully chosen points can exactly integrate polynomials of degree \(2n-1\) rather than merely degree \(n-1\)) represents a doubling of precision compared to equally spaced methods.

See Gauss-Legendre Quadrature on Wikipedia for more information.

Historical Context for Gaussian Quadrature

The remarkable properties of Gaussian quadrature (exact integration of degree \(2n-1\) polynomials with only \(n\) points) were discovered by Carl Friedrich Gauss in 1814, though the method gained widespread practical use only with the development of efficient algorithms for computing nodes and weights.

Gauss published his seminal work Methodus nova integralium valores per approximationem inveniendi (A New Method for Finding the Values of Integrals by Approximation), introducing the revolutionary concept of choosing both evaluation points and weights optimally to maximize accuracy. His method effectively doubled the precision of numerical integration compared to existing Newton-Cotes formulas, achieving exact integration of degree \(2n-1\) polynomials with \(n\) points. Gauss calculated nodes and weights by hand with 16-digit precision for orders up to \(n=7\), a remarkable computational feat.

The theoretical foundation was extended by Carl Gustav Jacob Jacobi in 1826, who connected Gaussian quadrature to orthogonal polynomials, particularly Legendre polynomials whose roots define the nodes. This connection provided an elegant mathematical framework for understanding and generalizing the method.

Despite its theoretical elegance, practical application remained limited by the computational difficulty of determining nodes and weights for higher orders. The advent of modern computers and the development of the Golub-Welsch algorithm in 1969 transformed Gaussian quadrature into a widely practical tool, which we examine next.

The Golub-Welsch Algorithm

For higher-order Gaussian quadrature, finding the nodes and weights becomes more complex. The Golub-Welsch algorithm provides a stable and efficient method for computing them. See [1] for the original paper.

The algorithm connects the problem of finding the nodes and weights to the eigenvalue problem of a symmetric tridiagonal matrix. The nodes of an n-point Gaussian quadrature are the eigenvalues of a specific n x n tridiagonal matrix called the Jacobi matrix. The weights can be calculated from the first components of the normalized eigenvectors.

Fortunately, we don’t need to implement this algorithm ourselves. SciPy provides functions to calculate the nodes and weights for various types of Gaussian quadrature. For Gauss-Legendre quadrature (the most common type), we can use scipy.special.roots_legendre.

Here is an example of how to use it in Python:

import numpy as np
from scipy.special import roots_legendre

# Get nodes and weights for n=5 in [-1, 1]
n = 2
nodes, weights = roots_legendre(n)

nodes

array([-0.57735027,  0.57735027])

weights

array([1., 1.])

We can define a function to perform Gaussian quadrature using SciPy:

import numpy as np
import scipy
def gauss(f, a, b, n):
    """
    Compute integral of f over [a,b] using n-point Gauss-Legendre quadrature.

    Maps the standard Gauss nodes from [-1,1] to [a,b], evaluates f at
    the transformed nodes, and scales by the interval length Jacobian.
    """
    # Get n nodes and weights for standard interval [-1, 1]
    nodes, weights = scipy.special.roots_legendre(n)
    integral = 0
    for i in range(n):
        # Transform node from [-1,1] to [a,b] using x = (b-a)/2 * xi + (a+b)/2
        xi = 0.5 * (b - a) * nodes[i] + 0.5 * (b + a)

        # Accumulate weighted function values
        integral += weights[i] * f(xi)

    # Scale by Jacobian dx/dxi = (b-a)/2
    integral *= 0.5 * (b - a)
    return integral

x = sp.Symbol('x')
p = lambda x: 1 + 3*x**2 - 3*x**3
sp.Integral(p(x), (x, 0, 1)).evalf()

def f(x):
    return 1 + 3*x**2 - 3*x**3
gauss(f, 0, 1, 2)

np.float64(1.2500000000000002)

mechanicskit.gaussint()

Of course we include this in the mechanicskit library for easy use. The function parameter can be symbolic, lambda or a normal python function as shown above.

from mechanicskit import gaussint
import sympy as sp

Symbolic functions work

x = sp.Symbol('x')
gaussint(1 + 3*x**2 - 3*x**3, 0, 1, n=2)

np.float64(1.25)

We can use lambda functions

gaussint(lambda x: 1 + 3*x**2 - 3*x**3, 0, 1, n=2)

np.float64(1.2500000000000002)

And we can use normal python functions

def f(x):
    return 1 + 3*x**2 - 3*x**3
gaussint(f, 0, 1, n=2)

np.float64(1.2500000000000002)

Non-trivial integrals with Gauss quadrature

Note that Gauss quadrature does not exactly integrate nonpolynomial functions in general.

Let’s say we need to integrate the function

\[ f(x)=\frac{1}{\sqrt{\sin (x)}} \text { for } x \in[0,1] \]

The resulting integral

\[ \int_0^1 \frac{1}{\sqrt{\sin (x)}} d x \]

is non-elementary.

x = sp.Symbol('x')
f_expr = 1/sp.sqrt(sp.sin(x))

a = 0; b = 1

fig, ax = plt.subplots(figsize=(6, 4))

x1 = 0.01
fplot(f_expr, range=(x1, x2), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

f_numeric = sp.lambdify(x, f_expr, 'numpy')
x_fill = np.linspace(x1, x2, 500)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5)


ax.set_xlim(x1, x2)
ax.set_ylim(0, max(y_fill)*1.1)
ax.legend(loc='upper right')
ax.grid(False)
plt.show()

start_time = time.perf_counter()

result = sp.Integral(f_expr, (x, 0, 1)).evalf()

end_time = time.perf_counter()
duration = end_time - start_time

print(f"Result: {result}")
print(f"Evaluation took {duration:.6f} seconds")

Result: 2.03480531920757
Evaluation took 0.128875 seconds

scipy.integrate.quad

While our gaussint function uses a fixed number of evaluation points, production-quality integration often requires adaptive methods that automatically adjust the sampling density based on the integrand’s behavior. The scipy.integrate.quad function provides this capability through the QUADPACK library’s QAGS routine.

The method employs Gauss-Kronrod quadrature rules, which extend Gaussian quadrature by adding \(n+1\) points to an \(n\)-point Gaussian rule. This nested structure allows simultaneous computation of two approximations: one from the \(n\)-point Gauss rule and one from the \((2n+1)\)-point Kronrod rule. Comparing these approximations provides a robust error estimate without requiring additional function evaluations. When the estimated error exceeds tolerance, the algorithm subdivides the interval and applies the same process recursively, concentrating evaluation points where the integrand varies most rapidly.

We apply this method to our test integral to compare with the symbolic and fixed-point Gaussian results:

from scipy.integrate import quad
f_num = sp.lambdify(x, f_expr, 'numpy')

start_time = time.perf_counter()

I_Quad, error = quad(f_num, 0, 1)

end_time = time.perf_counter()
duration = end_time - start_time

print(f"Result: {I_Quad}")
print(f"Estimated error: {error}")
print(f"Evaluation took {duration:.6f} seconds")

Result: 2.0348053192075737
Estimated error: 9.121112753973648e-10
Evaluation took 0.000413 seconds

start_time = time.perf_counter()

I_G = gaussint(f_expr, 0, 1, n=1000)

end_time = time.perf_counter()
duration = end_time - start_time

error = abs(I_Quad - I_G)


print(f"Result: {I_G}")
print(f"Error vs quad: {error}")
print(f"Evaluation took {duration:.6f} seconds")

Result: 2.0339350641331047
Error vs quad: 0.0008702550744690285
Evaluation took 0.031276 seconds

The choice between fixed-point Gaussian quadrature and adaptive methods depends on the application context. For exploratory integration of arbitrary functions (particularly those with unknown smoothness or potential singularities), adaptive methods like scipy.integrate.quad provide robustness and automatic error control. However, fixed-point Gaussian quadrature remains the method of choice in finite element analysis and other applications requiring repeated integration of smooth functions over standard domains, where the overhead of adaptive subdivision cannot be justified. Our mechanicskit.gaussint() function serves pedagogical purposes, illustrating the core principles that underlie both approaches. When learning numerical integration, implementing and experimenting with basic Gaussian quadrature builds understanding of the fundamental ideas (orthogonal polynomials, optimal node placement, and weight computation) that inform more sophisticated adaptive schemes.

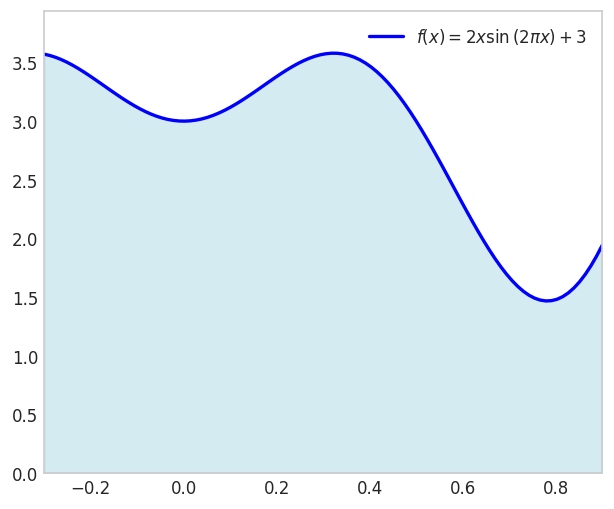

Example: A sinusoidal function

\[ u(x)=2 x \sin (2 \pi x)+3 \text { for } x \in[-0.3,0.9] \]

x = sp.Symbol('x')
f_expr = 2*x*sp.sin(2*sp.pi*x) + 3

a = -0.3; b = 0.9

fig, ax = plt.subplots(figsize=(6, 5))

fplot(f_expr, range=(a, b), color='blue', linewidth=2,
      label=f'$f(x) = {sp.latex(f_expr)}$')

f_numeric = sp.lambdify(x, f_expr, 'numpy')
x_fill = np.linspace(a, b, 500)
y_fill = f_numeric(x_fill)
ax.fill_between(x_fill, y_fill, color='lightblue', alpha=0.5)


ax.set_xlim(a, b)
ax.set_ylim(0, max(y_fill)*1.1)
ax.legend(loc='upper right')
ax.grid(False)
plt.show()

f_num = sp.lambdify(x, f_expr, 'numpy')
I_Quad, error = quad(f_num, 0, 1)

start_time = time.perf_counter()

I_G = gaussint(f_expr, 0, 1, n=8)



end_time = time.perf_counter()
duration = end_time - start_time

error = abs(I_Quad - I_G)


print(f"Result: {I_G}")
print(f"Error vs quad: {error}")
print(f"Evaluation took {duration:.6f} seconds")

Result: 2.681690113379141
Error vs quad: 4.37068603531543e-10
Evaluation took 0.001475 seconds

N = range(1,14)
errors = []
for n in N:
    I_G = gaussint(f_expr, 0, 1, n=n)
    error = abs(I_Quad - I_G)
    errors.append(error)

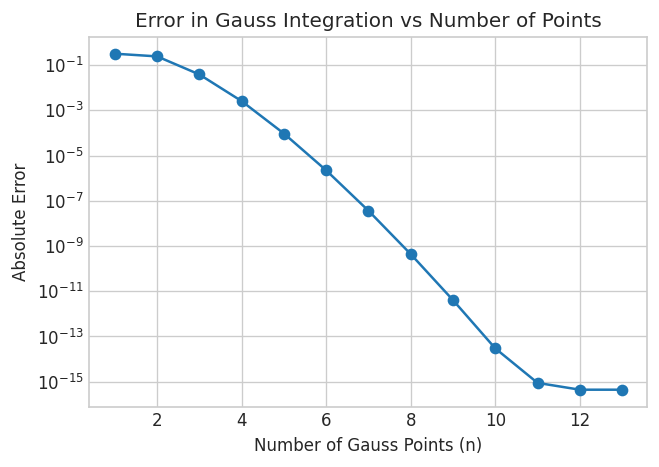

plt.figure(figsize=(6,4))
plt.semilogy(N, errors, marker='o')
plt.xlabel('Number of Gauss Points (n)')
plt.ylabel('Absolute Error')
plt.title('Error in Gauss Integration vs Number of Points')
plt.show()

Here we see that Gauss reaches the same precision as scipy.integrate.quad after 12 function evaluations.

Gauss Visualization

Here is a visualization of the Gauss integration method for the function

\[ f(x)=2 x \sin (12 x)+3 \quad \text{ for }x \in[-0.3,0.9] \]

Code

from matplotlib.animation import FuncAnimation
from IPython.display import HTML
import matplotlib
matplotlib.rcParams['animation.embed_limit'] = 50  # Increase if needed
from matplotlib.colors import to_rgba
from scipy.special import roots_legendre

f_expr = 2*x*sp.sin(12*x) + 3
a = -0.3; b = 0.9
f_numeric = sp.lambdify(x, f_expr, 'numpy')

I_e = quad(f_numeric, a, b)[0]

N_values = list(range(2, 19, 1))
dx = (b - a)/2

def makePlot(N):
    if N < 1: return
    nodes, weights = roots_legendre(N)

    x_i = nodes*(b - a)/2 + (b + a)/2
    w_i = weights * (b - a) / 2
    y_i = f_numeric(x_i)

    # fig, ax = plt.subplots(figsize=(6, 4))
    # ax.grid(False)


    edges = np.concatenate(([a], np.cumsum(w_i) + a))
    for i in range(N):
        # Bar spans from edges[i] to edges[i+1]
        # Height is f(x_i)
        w = w_i[i]
        xi = x_i[i]
        yi = y_i[i]

        ax.fill_between([edges[i], edges[i+1]], [y_i[i], y_i[i]],
                    color='cyan', edgecolor='k', alpha=0.5)

        ax.plot(xi, yi, 'ko', markersize=4)

    fplot(f_expr, range=(a, b), color='red', linewidth=3, ax=ax,
      label=f'$f(x) = {sp.latex(f_expr)}$')
    ax.set_title(f"N: {N}, Integration error: {abs(I_e - np.sum(w_i * y_i)):.6e}")
    ax.grid(False)
    ax.set_xlim(a, b)
    ax.set_ylim(0, 5)



def animate(frame_idx):
    """Animation function for each frame"""
    ax.clear()

    N = N_values[frame_idx]
    makePlot(N)

# Create figure and axis (close to prevent static display)
fig, ax = plt.subplots(figsize=(6, 4))
plt.close(fig)  # Prevent static image from showing

# Create animation
anim = FuncAnimation(fig, animate, frames=len(N_values),
                     interval=800, repeat=True)

# Display as interactive HTML
# HTML(anim.to_jshtml())

# Get the HTML and wrap it with responsive CS
anim_html = anim.to_jshtml()

mk.to_responsive_html(anim, container_id='gauss_animation')

Once Loop Reflect

Alternative Derivation: Polynomial Fitting Perspective

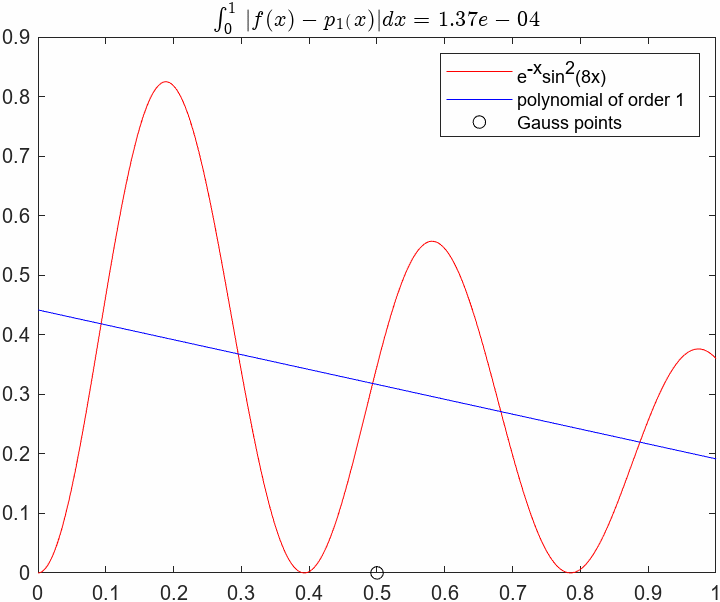

We have seen that Gaussian quadrature nodes are the roots of Legendre polynomials, but this connection may seem somewhat mysterious. An alternative derivation provides geometric intuition by viewing Gaussian quadrature as optimal polynomial approximation.

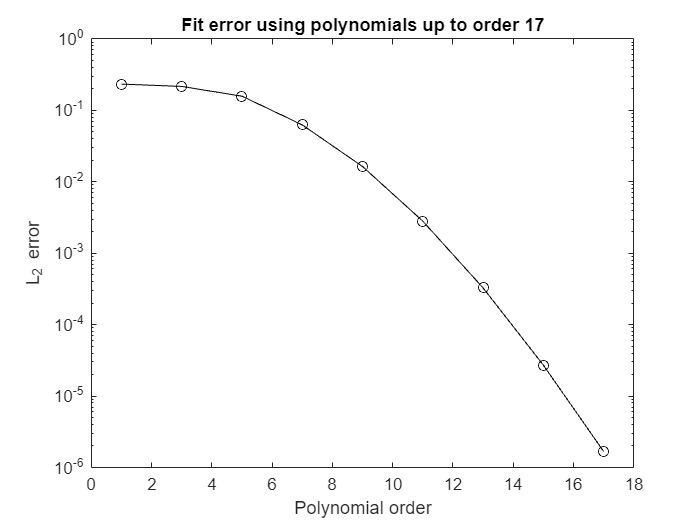

The key insight is that any function can be locally approximated by a polynomial. If we fit a polynomial \(p_n(x)\) of degree \(n\) to a function \(f(x)\) and integrate the polynomial exactly, we obtain an approximation to the integral of \(f\). Since an \(n\)-point Gaussian rule integrates polynomials of degree up to \(2n-1\) exactly, choosing the integration points optimally allows us to integrate the best-fitting polynomial without error. The only approximation error comes from the polynomial fit itself, not from the integration step.

This perspective reveals why Gaussian quadrature is so effective: it separates the approximation error (fitting a polynomial to the function) from the integration error (integrating the polynomial), then eliminates the latter entirely by exact polynomial integration. We formalize this approach by setting up a system of equations that ensures exact integration of all monomials up to degree \(2n-1\):

When \(f(x)\) is not a polynomial function, we still can approximate the integral by in a sense choosing the closest matching polynomial of the type \(p(x)=a_0+a_1 x+a_2 x^2+\ldots+a_n x^n\) and the corresponding Gauss quadrature rule to integrate this polynomial exactly.

These special points and weights can be found in several ways. The Golub-Welsch algorithm is the most useful implementation, but we consider another approach that is more intuitive.

For a certain approximation, e.g., the linear

\[ \hat{f}(x)=a_0+a_1 x \]

we have

\[ w_1 \hat{f}_i\left(x_i\right)=\int_0^1 \hat{f}_i\left(x_i\right) dx \]

with \(\hat{f}_1=1, \hat{f}_2=x\) This yields a system of equations

\[ \begin{cases}w_1 \cdot 1=\int_0^1 1 dx & \Rightarrow w_1=1 \\ w_1 \cdot x_1=\int_0^1 xdx & \Rightarrow x_1=1 / 2\end{cases} \]

This also works for higher order approximations, e.g., cubic. Note we need polynomial functions which contain even terms since the points and weights are associated with the unknown coefficients \(a_i\)

\[ \hat{f}(x)=a_0+a_1 x+a_2 x^2+a_3 x^3 \]

with \(\hat{f}_1=1, \hat{f}_2=x, \hat{f}_3=x^2, \hat{f}_4=x^3\) from which we form

\[ w_1 \hat{f}_i\left(x_1\right)+w_2 \hat{f}_i\left(x_2\right)=\int_0^1 \hat{f}_i(x) \mathrm{dx} \]

\[ \left\{\begin{array}{lr} i=1: & w_1+w_2=\int_0^1 1 dx=1 \\ i=2: & w_1 x_1+w_2 x_2=\int_0^1 \mathrm{xdx}=1 / 2 \\ i=3: & w_1 x_1^2+w_2 x_2^2=\int_0^1 x^2 dx=1 / 3 \\ i=4: & w_1 x_1^3+w_2 x_2^3=\int_0^1 x^3 dx=1 / 4 \end{array}\right. \]

Now we could solve this symbolically, below, but we shall also see how to solve this system of non-linear equations numerically using Newton’s method.

import sympy as sp
from mechanicskit import la

w1, w2, x1, x2, x = sp.symbols('w1 w2 x1 x2 x')

# Define equations: (Left Hand Side) - (Right Hand Side) == 0
eqs = [w1*x1**i + w2*x2**i - sp.integrate(x**i, (x, 0, 1)) for i in range(4)]

sol = sp.solve(eqs, [w1, w2, x1, x2])
sol | la

We get two solutions, a mirror of each other.

Solving the non-linear system of equations

The Newton method states

\[ \mathbf{x}^{k+1}=\mathbf{x}^k-\mathbf{J}\left(\mathbf{x}^k\right)^{-1} \mathbf{f}\left(\mathbf{x}^k\right) \]

where

\[ \mathbf{J}=\left[\begin{array}{cccc} \frac{\partial f_1}{\partial x_1} & \frac{\partial f_1}{\partial x_2} & \cdots & \frac{\partial f_1}{\partial x_n} \\ \frac{\partial f_2}{\partial x_1} & \frac{\partial f_2}{\partial x_2} & \cdots & \frac{\partial f_2}{\partial x_n} \\ \vdots & \vdots & \ddots & \vdots \\ \frac{\partial f_n}{\partial x_1} & \frac{\partial f_n}{\partial x_2} & \cdots & \frac{\partial f_n}{\partial x_n} \end{array}\right] \]

Now we rewrite this such that we can turn it into a linear system

\[ \mathbf{J}\left(\mathbf{x}^k\right)\left(\mathbf{x}^{k+1}-\mathbf{x}^k\right)=-\mathbf{f}\left(\mathbf{x}^k\right) \]

or

\[ \mathbf{A x}=\mathbf{b} \]

with \(\mathbf{A}=\mathbf{J}\left(\mathbf{x}^k\right), \mathbf{x}=\Delta \mathbf{x}=\left(\mathbf{x}^{k+1}-\mathbf{x}^k\right)\) and \(\mathbf{b}=-\mathbf{f}\left(\mathbf{x}^k\right)\)

We will also need initial values for \(w_1, w_2, x_1, x_2\), we will choose randomly such that they all are in the interval \([0,1]\).

import sympy as sp
import numpy as np

# 1. Symbolic Setup
w1, w2, x1, x2, x = sp.symbols('w1 w2 x1 x2 x')
vars = [w1, w2, x1, x2]

# 2. Define Equations (LHS - RHS)
f_exprs = [w1*x1**i + w2*x2**i - sp.integrate(x**i, (x, 0, 1)) for i in range(4)]

# 3. Create Jacobian and Functions (Equivalent to matlabFunction)
J_sym = sp.Matrix(f_exprs).jacobian(vars)
f_num = sp.lambdify(vars, f_exprs, 'numpy')
J_num = sp.lambdify(vars, J_sym, 'numpy')

# 4. Numeric Solver (Newton-Raphson)
x_val = np.random.rand(4)

for i in range(1000):
    f_vec = np.array(f_num(*x_val))
    J_mat = np.array(J_num(*x_val))

    # Solve J * delta = -f (Equivalent to J\-f)
    delta = np.linalg.solve(J_mat, -f_vec)
    x_new = x_val + delta

    x_str = np.array2string(x_new, formatter={'float_kind': lambda x: f"{x:8.4f}"})

    eps = np.linalg.norm(x_new - x_val)
    print(f"Iteration {i}:\t x = {x_str},\t ||delta|| = {eps:.4e}")
    if eps < 1e-12:
        x_val = x_new
        break
    x_val = x_new

print(f"Converged in {i} iterations.")
print(f"Result: {x_val}")

Iteration 0:     x = [ -2.6397   3.6397   1.6287   0.5537],  ||delta|| = 4.3982e+00
Iteration 1:     x = [  0.2457   0.7543   1.6635   0.4917],  ||delta|| = 4.0812e+00
Iteration 2:     x = [  0.1796   0.8204   1.3800   0.3160],  ||delta|| = 3.4633e-01
Iteration 3:     x = [  0.2238   0.7762   1.0237   0.3280],  ||delta|| = 3.6199e-01
Iteration 4:     x = [  0.4143   0.5857   0.7424   0.2594],  ||delta|| = 3.9547e-01
Iteration 5:     x = [  0.5012   0.4988   0.8031   0.2139],  ||delta|| = 1.4441e-01
Iteration 6:     x = [  0.4991   0.5009   0.7894   0.2116],  ||delta|| = 1.4204e-02
Iteration 7:     x = [  0.5000   0.5000   0.7887   0.2113],  ||delta|| = 1.4411e-03
Iteration 8:     x = [  0.5000   0.5000   0.7887   0.2113],  ||delta|| = 2.8941e-06
Iteration 9:     x = [  0.5000   0.5000   0.7887   0.2113],  ||delta|| = 7.2428e-12
Iteration 10:    x = [  0.5000   0.5000   0.7887   0.2113],  ||delta|| = 9.1593e-16
Converged in 10 iterations.
Result: [0.5        0.5        0.78867513 0.21132487]
